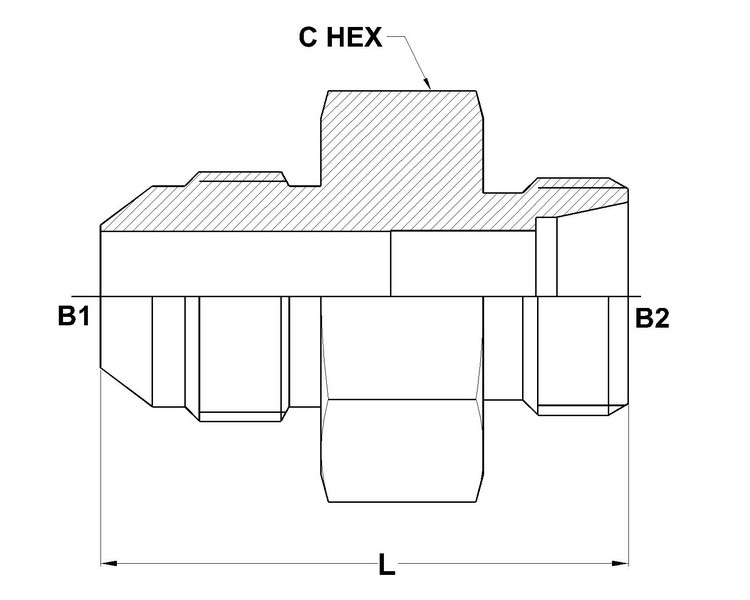

| PART NO.SIZE | B1 TUBE O.D | B2 TUBE O.D | B1 JIC | B2 MM | B1 DRILL | B2 DRILL | L LGTH | C HEX |
|---|---|---|---|---|---|---|---|---|
| 7005-04-S06-14 | 1/4 | 06 | 7/16-20 | M14 x 1.5 | 4.4 | 4.0 | 32.0 | 14.0 |
| 7005-04-S08-16 | 1/4 | 08 | 7/16-20 | M16 x 1.5 | 4.4 | 5.0 | 34.0 | 17.0 |
| 7005-06-S08-16 | 3/8 | 08 | 9/16-18 | M16 x 1.5 | 7.5 | 5.0 | 33.7 | 17.0 |
| 7005-06-S10-18 | 3/8 | 10 | 9/16-18 | M18 x 1.5 | 7.5 | 7.0 | 34.1 | 19.0 |
| 7005-06-S12-20 | 3/8 | 12 | 9/16-18 | M20 x 1.5 | 7.5 | 8.0 | 36.1 | 22.0 |
| 7005-08-S08-16 | 1/2 | 08 | 3/4-16 | M16 x 1.5 | 9.9 | 5.0 | 36.4 | 19.0 |
| 7005-08-S10-18 | 1/2 | 10 | 3/4-16 | M18 x 1.5 | 9.9 | 7.0 | 36.4 | 19.0 |
| 7005-08-S12-20 | 1/2 | 12 | 3/4-16 | M20 x 1.5 | 9.9 | 8.0 | 38.7 | 22.0 |
| 7005-08-S14-22 | 1/2 | 14 | 3/4-16 | M22 x 1.5 | 9.9 | 10.0 | 40.7 | 24.0 |
| 7005-08-S16-24 | 1/2 | 16 | 3/4-16 | M24 x 1.5 | 9.9 | 12.0 | 40.7 | 27.0 |
| 7005-10-S12-20 | 5/8 | 12 | 7/8-14 | M20 x 1.5 | 12.3 | 8.0 | 40.5 | 24.0 |
| 7005-10-S16-24 | 5/8 | 16 | 7/8-14 | M24 x 1.5 | 12.3 | 12.0 | 43.3 | 27.0 |
| 7005-12-S16-24 | 3/4 | 16 | 1-1/16-12 | M24 x 1.5 | 15.5 | 12.0 | 47.0 | 27.0 |
| 7005-12-S20-30 | 3/4 | 20 | 1-1/16-12 | M30 x 2 | 15.5 | 16.0 | 49.9 | 32.0 |
| 7005-12-S25-36 | 3/4 | 25 | 1-1/16-12 | M36 x 2 | 15.5 | 20.0 | 53.9 | 41.0 |
| 7005-16-S30-42 | 1 | 30 | 1-5/16-12 | M42 x 2 | 21.5 | 25.0 | 57.1 | 46.0 |
| 7005-20-S38-52 | 1-1/4 | 38 | 1-5/8-12 | M52 x 2 | 27.5 | 32.0 | 63.3 | 55.0 |
| 7005-24-S38-52 | 1-1/2 | 38 | 1-7/8-12 | M52 x 2 | 33.0 | 32.0 | 66.5 | 55.0 |
