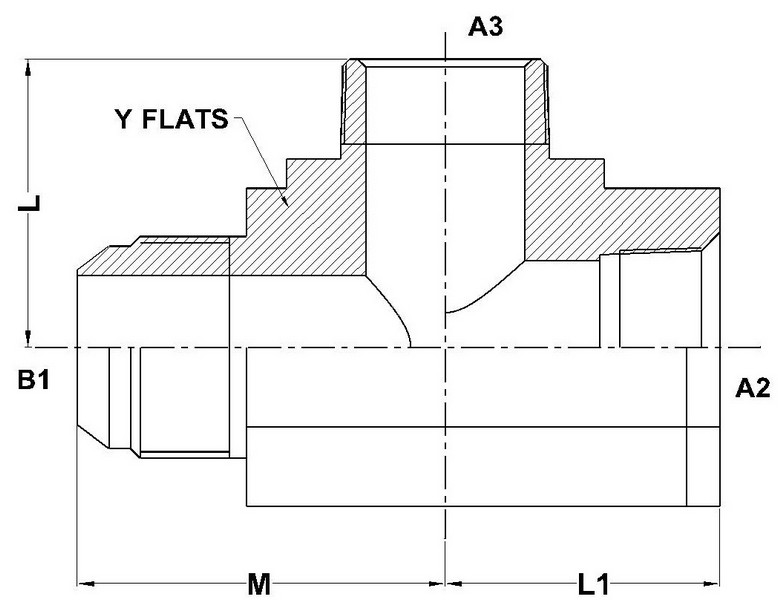

2608 Series
| PART NO. SIZE |
TUBE O.D. |
B1 SAE 37 |
A2 NPTF |
A3 NPTF |
B1 DRILL |
A3 DRILL |
M LGTH |
L1 LGTH |
L LGTH |
Y FLATS |
| 2608-04-02-02-FG |
1/4 |
7/16-20 |
1/8-27 |
1/8-27 |
0.172 |
0.188 |
1.08 |
0.66 |
0.78 |
0.562 |
| 2608-06-04-04-FG |
3/8 |
9/16-18 |
1/4-18 |
1/4-18 |
0.297 |
0.281 |
1.23 |
0.88 |
1.09 |
0.750 |
| 2608-08-02-06-FG |
1/2 |
3/4-16 |
1/8-27 |
3/8-18 |
0.391 |
0.406 |
1.25 |
0.81 |
1.22 |
0.750 |
| 2608-08-06-06-FG |
1/2 |
3/4-16 |
3/8-18 |
3/8-18 |
0.391 |
0.406 |
1.42 |
1.02 |
1.22 |
0.875 |
| 2608-10-08-08-FG |
5/8 |
7/8-14 |
1/2-14 |
1/2-14 |
0.484 |
0.531 |
1.64 |
1.23 |
1.47 |
1.062 |
| 2608-12-12-12-FG |
3/4 |
1-1/16-12 |
3/4-14 |
3/4-14 |
0.609 |
0.719 |
1.89 |
1.36 |
1.59 |
1.312 |
| 2608-16-16-16-FG |
1 |
1-5/16-12 |
1-11-1/2 |
1-11-1/2 |
0.844 |
0.938 |
2.17 |
1.62 |
1.70 |
1.625 |
