7007-S Series
| PART NO.SIZE |

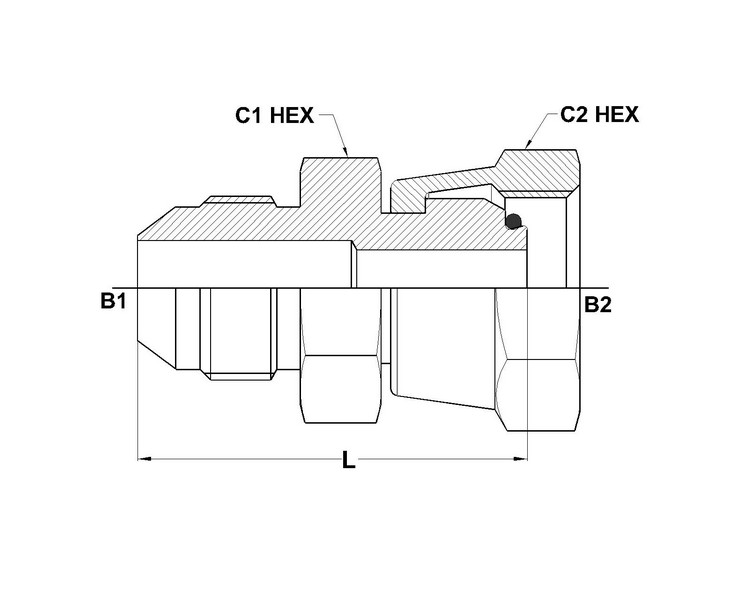

B1 TUBE O.D |
B2 TUBE O.D |
B1 JIC |
B2 MS |
B1 DRILL |
B2 DRILL |
L LGTH |
C1 HEX |
C2 HEX |
| 7007-04-S06-14 |
1/4 |
06 |
7/16-20 |
M14 x 1.5 |
4.4 |
2.5 |
39.8 |
12.0 |
17.0 |
| 7007-06-S10-18 |
3/8 |
10 |
9/16-18 |
M18 x 1.5 |
7.5 |
6.0 |
43.2 |
17.0 |
22.0 |
| 7007-06-S12-20 |
3/8 |
12 |
9/16-18 |
M20 x 1.5 |
7.5 |
8.0 |
39.1 |
19.0 |
24.0 |
| 7007-08-S12-20 |
1/2 |
12 |
3/4-16 |
M20 x 1.5 |
9.9 |
8.0 |
45.9 |
19.0 |
24.0 |
| 7007-08-S16-24 |
1/2 |
16 |
3/4-16 |
M24 x 1.5 |
9.9 |
11.0 |
43.7 |
22.0 |
30.0 |
| 7007-10-S12-20 |
5/8 |
12 |
7/8-14 |
M20 x 1.5 |
12.3 |
8.0 |
50.0 |
24.0 |
24.0 |
| 7007-12-S16-24 |
3/4 |
16 |
1-1/16-12 |
M24 x 1.5 |
15.5 |
11.0 |
57.0 |
27.0 |
30.0 |
| 7007-12-S20-30 |
3/4 |
20 |
1-1/16-12 |
M30 x 2 |
15.5 |
14.0 |
61.0 |
27.0 |
36.0 |
| 7007-12-S25-36 |
3/4 |
25 |
1-1/16-12 |
M36 x 2 |
15.5 |
19.0 |
55.4 |
32.0 |
46.0 |
| 7007-16-S30-42 |
1 |
30 |
1-5/16-12 |
M42 x 2 |
21.5 |
24.0 |
62.1 |
42.0 |
50.0 |
| 7007-20-S30-42 |
1-1/4 |
30 |
1-5/8-12 |
M42 x 2 |
27.5 |
24.0 |
71.4 |
46.0 |
50.0 |
| 7007-24-S38-52 |
1-1/2 |
38 |
1-7/8-12 |
M52 x 2 |
33.0 |
32.0 |
82.3 |
50.0 |
60.0 |
