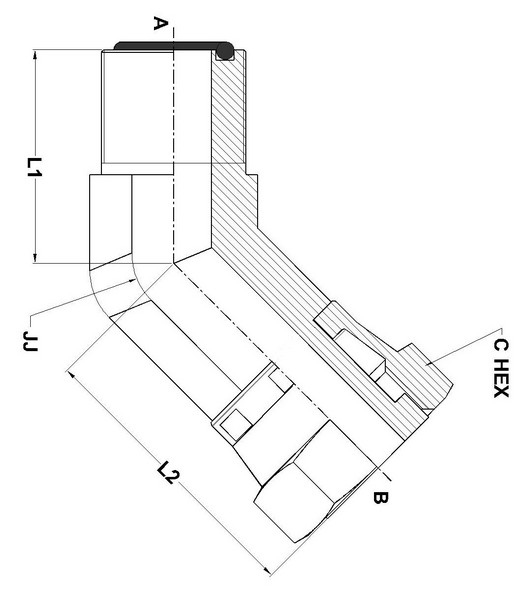

FS6502 Series
| PART NO.SIZE |
TUBE O.D. |
A THREAD |
B THREAD |
A DRILL |
B DRILL |
L1 LGTH |
L2 LGTH |
C HEX |
JJ FLATS |
| FS6502-04-04-FG |
1/4 |
9/16-18 |
9/16-18 |
0.172 |
0.165 |
0.63 |
0.99 |
0.687 |
0.562 |
| FS6502-06-06-FG |
3/8 |
11/16-16 |
11/16-16 |
0.264 |
0.264 |
0.74 |
1.12 |
0.812 |
0.750 |
| FS6502-08-08-FG |
1/2 |
13/16-16 |
13/16-16 |
0.378 |
0.358 |
0.80 |
1.49 |
0.938 |
0.750 |
| FS6502-10-10-FG |
5/8 |
1-14 |
1-14 |
0.484 |
0.453 |
0.92 |
1.53 |
1.125 |
1.062 |
| FS6502-12-12-FG |
3/4 |
1-3/16-12 |
1-3/16-12 |
0.609 |
0.547 |
1.02 |
1.73 |
1.375 |
1.188 |
| FS6502-16-16-FG |
1 |
1-7/16-12 |
1-7/16-12 |
0.811 |
0.783 |
1.18 |
1.87 |
1.625 |
1.438 |
| FS6502-20-20-FG |
1-1/4 |
1-11/16-12 |
1-11/16-12 |
1.024 |
1.024 |
1.26 |
1.98 |
1.875 |
1.625 |
