MFS Bulkhead-MORB Straight

O-Ring Face Seal Fittings

FS2764 Series

MFS Bulkhead-MORB Straight

Enquiry

Download PDF

FS2764 Series

Show entries

Search:

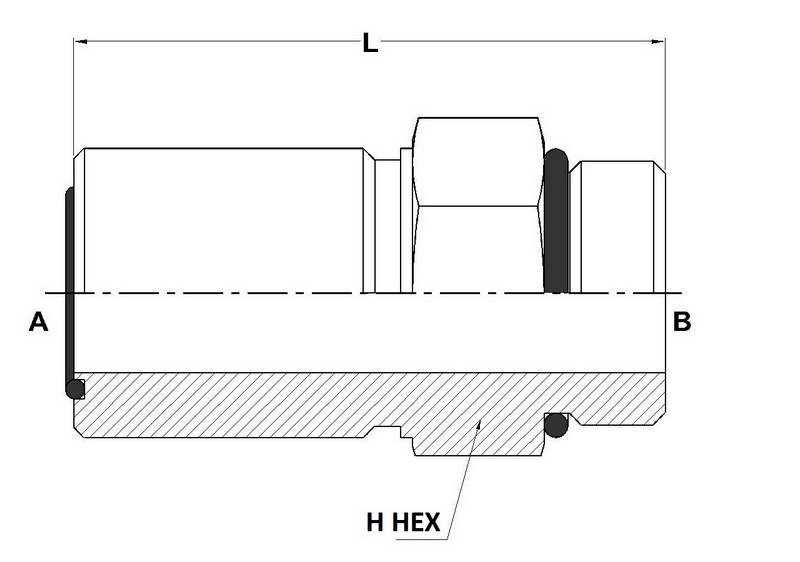

PART NO.SIZE	TUBE O.D.	A THREAD	B MORB	A DRILL	B DRILL	L LGTH	H HEX
FS2764-04-04	1/4	9/16-18	7/16-20	0.172	0.172	2.08	0.812
FS2764-04-06	3/8	9/16-18	9/16-18	0.172	0.264	2.12	0.812
FS2764-06-06	3/8	11/16-16	9/16-18	0.264	0.264	2.25	1.000
FS2764-08-08	1/2	13/16-16	3/4-16	0.378	0.378	2.46	1.125
FS2764-10-10	5/8	1-14	7/8-14	0.484	0.484	2.74	1.312
FS2764-12-12	3/4	1-3/16-12	1-1/16-12	0.609	0.609	2.89	1.500
FS2764-16-16	1	1-7/16-12	1-5/16-12	0.811	0.811	2.90	1.750
FS2764-20-20	1-1/4	1-11/16-12	1-5/8-12	1.024	1.024	2.90	2.000
FS2764-24-24	1-1/2	2-12	1-7/8-12	1.260	1.260	2.90	2.375

Showing 1 to 9 of 9 entries

*Locknut style available. Use part number FS2764-LN-(size)
