MAORB-FORB-FORB Tee

Tube Fittings & Adapters

6835 Series

MAORB-FORB-FORB Tee

Enquiry

Download PDF

6835 Series

Show entries

Search:

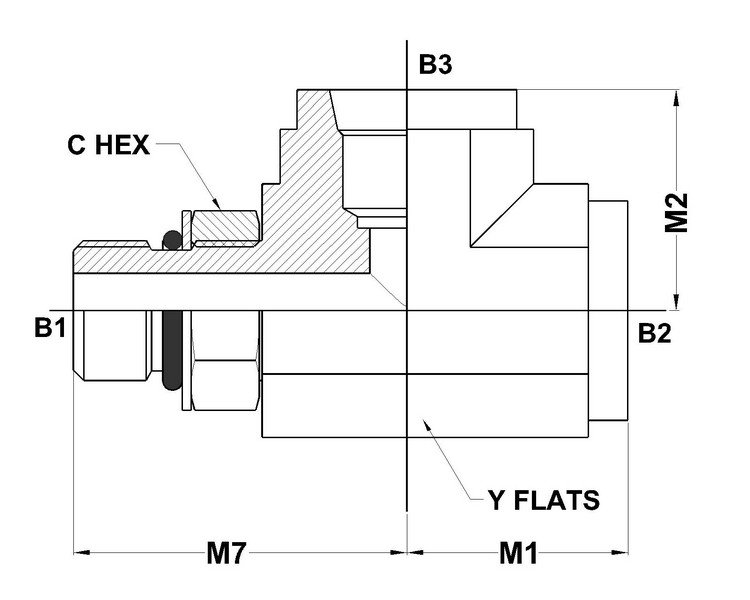

PART NO.SIZE	TUBE O.D.	B1 SAE ORB	B2 SAE ORB	B3 SAE ORB	B1 DRILL	M7 LGTH	M1 LGTH	M2 LGTH	C HEX	Y FLATS
6835-04-04-04-NWO-FG	1/4	7/16-20	7/16-20	7/16-20	0.172	1.23	0.63	0.63	0.563	0.750
6835-06-06-06-NWO-FG	3/8	9/16-18	9/16-18	9/16-18	0.297	1.38	0.75	0.75	0.688	0.875
6835-08-08-08-NWO-FG	1/2	3/4-16	3/4-16	3/4-16	0.391	1.59	0.88	0.88	0.875	1.062
6835-10-10-10-NWO-FG	5/8	7/8-14	7/8-14	7/8-14	0.484	1.81	1.02	1.02	1.000	1.062
6835-12-12-12-NWO-FG	3/4	1-1/16-12	1-1/16-12	1-1/16-12	0.609	2.00	1.21	1.21	1.250	1.312
6835-16-16-16-NWO-FG	1	1-5/16-12	1-5/16-12	1-5/16-12	0.844	2.25	1.33	1.33	1.500	1.625

Showing 1 to 6 of 6 entries
