JIC Tube Sleeve

Tube Fittings & Adapters
0319 Series

JIC Tube Sleeve


0319 Series SAE# 070115

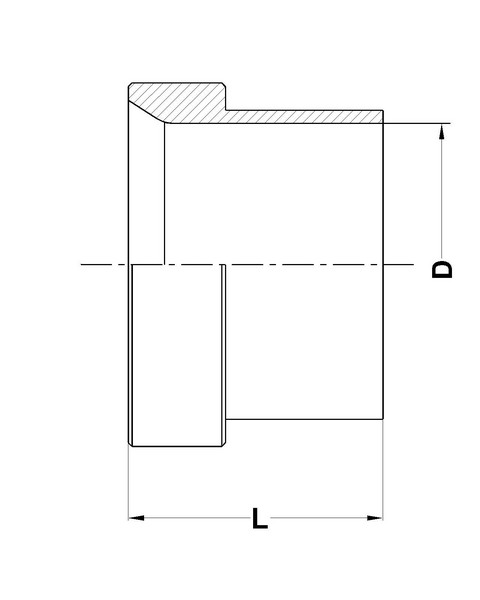

PART NO. SIZE TUBE O.D. L LGTH D I.D.
0319-02 1/8 0.34 0.130
0319-03 3/16 0.34 0.193
0319-04 1/4 0.41 0.255
0319-05 5/16 0.44 0.318
0319-06 3/8 0.50 0.380
0319-08 1/2 0.56 0.505
0319-10 5/8 0.66 0.631
0319-12 3/4 0.68 0.756
0319-14 7/8 0.76 0.881
0319-16 1 0.78 1.006
0319-20 1-1/4 0.91 1.260
0319-24 1-1/2 1.12 1.510
0319-32 2 1.19 2.014
