| Part No. | Series | Tube OD | l1 | i | S2 | S1 | d3 | G |
|---|---|---|---|---|---|---|---|---|
| GE 06 SM | Heavy-630 Bar | 6 | 12 | 12 | 17 | 17 | 17 | M12 X 1.5 |
| GE 08 SM | Heavy-630 Bar | 8 | 15 | 12 | 19 | 19 | 19 | M14 X 1.5 |
| GE 10 SM | Heavy-630 Bar | 10 | 15 | 12 | 22 | 22 | 21 | M16 X 1.5 |
| GE 12 SM | Heavy-630 Bar | 12 | 17 | 12 | 24 | 24 | 23 | M18 X 1.5 |
| GE 12 SM | Heavy-630 Bar | 12 | 17.5 | 14 | 24 | 27 | 27 | M22 X 1.5 |
| GE 14 SM | Heavy-400 Bar | 14 | 19 | 14 | 27 | 27 | 25 | M20 X 1.5 |
| GE 16 SM | Heavy-400 Bar | 16 | 18 | 12 | 30 | 27 | 23 | M18 X 1.5 |
| GE 16 SM | Heavy-400 Bar | 16 | 18.5 | 14 | 30 | 27 | 27 | M22 X 1.5 |
| GE 20 SM | Heavy-400 Bar | 20 | 20.5 | 16 | 36 | 32 | 32 | M27 X 2.0 |
| GE 25 SM | Heavy-400 Bar | 25 | 23 | 18 | 46 | 41 | 39 | M33 X 2.0 |
| GE 30 SM | Heavy-250 Bar | 30 | 23.5 | 20 | 50 | 50 | 49 | M42 X 2.0 |
| GE 38 SM | Heavy-250 Bar | 38 | 26 | 22 | 60 | 55 | 55 | M48 X 2.0 |

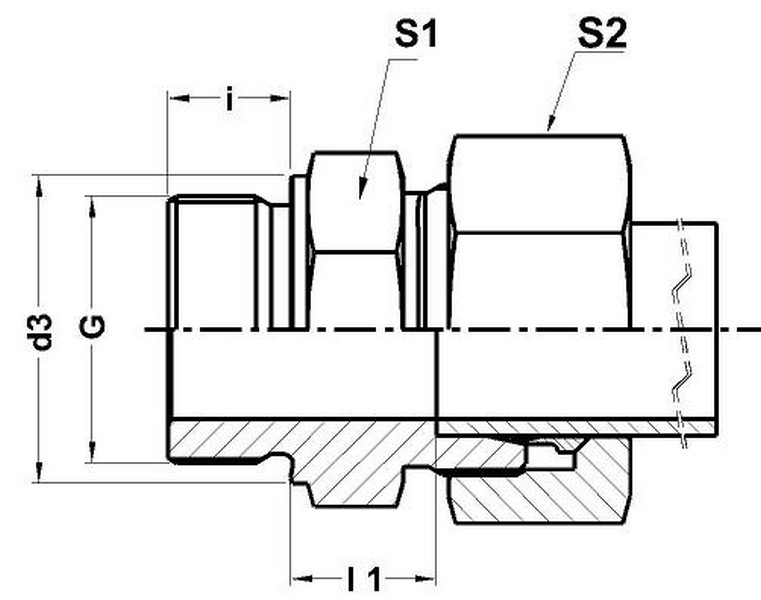

| Dimensions given approx. Fig. with tightened nut. Part No. Given referes to complete assembly - Steel Part |
