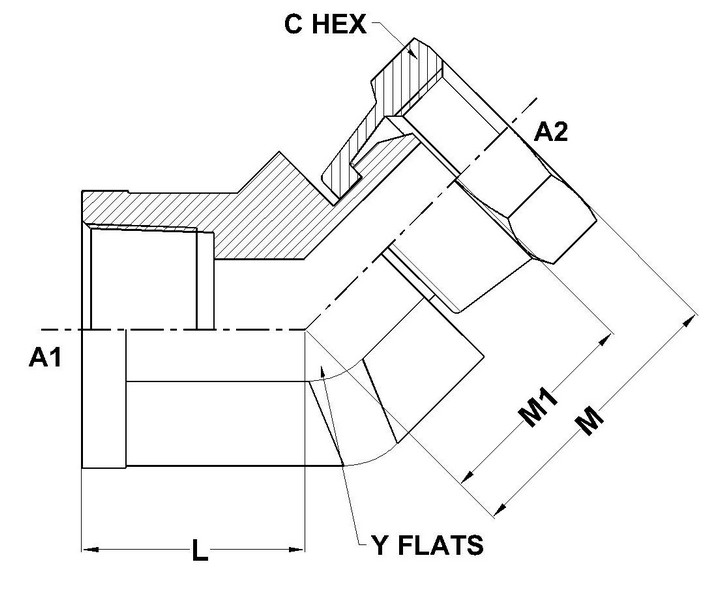

1504 Series SAE# 140331
| PART NO. SIZE |
A1 NPTF |
A2 NPSM |
A2 DRILL |
L LGTH |
M1 LGTH |
M LGTH |
C HEX |
Y FLATS |
| 1504-02-02-FG |
1/8-27 |
1/8-27 |
0.150 |
0.50 |
0.62 |
0.76 |
0.562 |
0.562 |
| 1504-02-04-FG |
1/8-27 |
1/4-18 |
0.220 |
0.50 |
0.76 |
0.95 |
0.688 |
0.750 |
| 1504-04-04-FG |
1/4-18 |
1/4-18 |
0.220 |
0.69 |
0.76 |
0.95 |
0.688 |
0.750 |
| 1504-04-06-FG |
1/4-18 |
3/8-18 |
0.340 |
0.69 |
0.77 |
0.98 |
0.875 |
0.875 |
| 1504-06-04-FG |
3/8-18 |
1/4-18 |
0.220 |
0.75 |
0.77 |
0.96 |
0.688 |
0.875 |
| 1504-06-06-FG |
3/8-18 |
3/8-18 |
0.340 |
0.75 |
0.77 |
0.98 |
0.875 |
0.875 |
| 1504-06-08-FG |
3/8-18 |
1/2-14 |
0.460 |
0.75 |
0.83 |
1.11 |
1.000 |
1.062 |
| 1504-08-06-FG |
1/2-14 |
3/8-18 |
0.340 |
0.94 |
0.83 |
1.04 |
0.875 |
1.062 |
| 1504-08-08-FG |
1/2-14 |
1/2-14 |
0.460 |
0.94 |
0.83 |
1.11 |
1.000 |
1.062 |
| 1504-12-08-FG |
3/4-14 |
1/2-14 |
0.460 |
1.00 |
0.96 |
1.24 |
1.000 |
1.312 |
| 1504-12-12-FG |
3/4-14 |
3/4-14 |
0.635 |
1.00 |
0.96 |
1.31 |
1.250 |
1.312 |
| 1504-16-12-FG |
1-11 1/2 |
3/4-14 |
0.635 |
1.19 |
1.07 |
1.42 |
1.250 |
1.625 |
| 1504-16-16-FG |
1-11 1/2 |
1-11 1/2 |
0.831 |
1.19 |
1.18 |
1.53 |
1.500 |
1.625 |
| 1504-20-20-FG |
1-1/4-11 1/2 |
1-1/4-11 1/2 |
1.087 |
1.44 |
1.23 |
1.65 |
1.875 |
1.875 |
| 1504-24-24-FG |
1-1/2-11 1/2 |
1-1/2-11 1/2 |
1.317 |
1.46 |
1.46 |
1.88 |
2.125 |
2.562 |
