2406 Series
| PART NO. Non-swivel |
PART NO. Insert only |
PART NO. Nut and Insert |

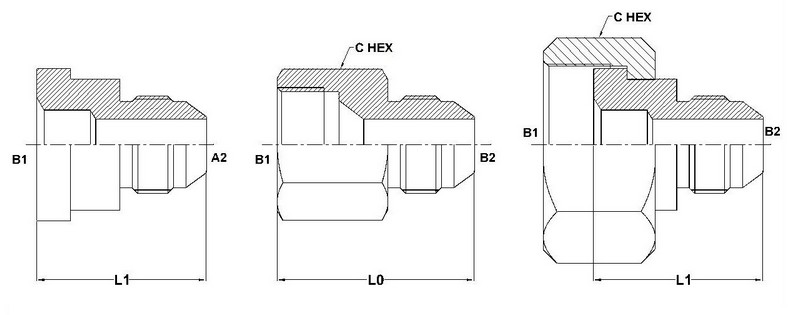

B1 TUBE O.D |
B2 TUBE O.D |
B1 SAE 37 |
B2 SAE 37 |
L1 LGTH |
LO LGTH |
C HEX |
| 2406-03-04 |
--- |
-- |
3/16 |
1/4 |
3/8-24 |
7/16-20 |
-- |
1.11 |
0.500 |
| 2406-04-02 |
2406-04-02-IN |
2406-04-02-2PC |
1/4 |
1/8 |
7/16-20 |
5/16-24 |
0.75 |
1.04 |
0.563 |
| 2406-04-03 |
-- |
-- |
1/4 |
3/16 |
7/16-20 |
3/8-24 |
-- |
1.07 |
0.563 |
| 2406-04-04 |
-- |
-- |
1/4 |
1/4 |
7/16-20 |
7/16-20 |
-- |
1.14 |
0.563 |
| 2406-04-05 |
-- |
-- |
1/4 |
5/16 |
7/16-20 |
1/2-20 |
-- |
1.14 |
0.563 |
| 2406-04-06 |
-- |
-- |
1/4 |
3/8 |
7/16-20 |
9/16-18 |
-- |
1.15 |
0.625 |
| 2406-04-08 |
-- |
-- |
1/4 |
1/2 |
7/16-20 |
3/4-16 |
-- |
1.25 |
0.625 |
| 2406-05-04 |
-- |
-- |
5/16 |
1/4 |
1/2-20 |
7/16-20 |
-- |
1.16 |
0.625 |
| 2406-05-06 |
-- |
-- |
5/16 |
3/8 |
1/2-20 |
9/16-18 |
-- |
1.17 |
0.625 |
| 2406-05-08 |
-- |
-- |
5/16 |
1/2 |
1/2-20 |
3/4-16 |
-- |
1.27 |
0.812 |
| 2406-06-02 |
2406-06-02-IN |
2406-06-02-2PC |
3/8 |
1/8 |
9/16-18 |
5/16-24 |
0.87 |
1.07 |
0.688 |
| 2406-06-03 |
2406-06-03-IN |
2406-06-03-2PC |
3/8 |
3/16 |
9/16-18 |
3/8-24 |
0.90 |
1.10 |
0.688 |
| 2406-06-04 |
2406-06-04-IN |
2406-06-04-2PC |
3/8 |
1/4 |
9/16-18 |
7/16-20 |
0.97 |
1.17 |
0.688 |
| 2406-06-05 |
-- |
-- |
3/8 |
5/16 |
9/16-18 |
1/2-20 |
-- |
1.18 |
0.688 |
| 2406-06-06 |
-- |
-- |
3/8 |
3/8 |
9/16-18 |
9/16-18 |
-- |
1.18 |
0.688 |
| 2406-06-08 |
-- |
-- |
3/8 |
1/2 |
9/16-18 |
3/4-16 |
-- |
1.28 |
0.812 |
| 2406-06-10 |
-- |
-- |
3/8 |
5/8 |
9/16-18 |
7/8-14 |
-- |
1.38 |
0.937 |
| 2406-08-04 |
2406-08-04-IN |
2406-08-04-2PC |
1/2 |
1/4 |
3/4-16 |
7/16-20 |
1.00 |
1.30 |
0.875 |
| 2406-08-05 |
2406-08-05-IN |
2406-08-05-2PC |
1/2 |
5/16 |
3/4-16 |
1/2-20 |
1.00 |
1.30 |
0.875 |
| 2406-08-06 |
2406-08-06-IN |
2406-08-06-2PC |
1/2 |
3/8 |
3/4-16 |
9/16-18 |
1.00 |
1.31 |
0.875 |
| 2406-08-08 |
-- |
-- |
1/2 |
1/2 |
3/4-16 |
3/4-16 |
-- |
1.41 |
0.875 |
| 2406-08-10 |
-- |
-- |
1/2 |
5/8 |
3/4-16 |
7/8-14 |
-- |
1.51 |
0.937 |
| 2406-08-12 |
-- |
-- |
1/2 |
3/4 |
3/4-16 |
1-1/16-12 |
-- |
1.61 |
1.125 |
| 2406-10-04 |
2406-10-04-IN |
2406-10-04-2PC |
5/8 |
1/4 |
7/8-14 |
7/16-20 |
1.03 |
1.39 |
1.000 |
| 2406-10-05 |
-- |
-- |
5/8 |
5/8 |
7/8-14 |
1/2-20 |
1.03 |
1.39 |
1.000 |
| 2406-10-06 |
2406-10-06-IN |
2406-10-06-2PC |
5/8 |
3/8 |
7/8-14 |
9/16-18 |
1.03 |
1.40 |
1.000 |
| 2406-10-08 |
-- |
-- |
5/8 |
1/2 |
7/8-14 |
3/4-16 |
-- |
1.50 |
1.000 |
| 2406-10-12 |
-- |
-- |
5/8 |
3/4 |
7/8-14 |
1-1/16-12 |
-- |
1.71 |
1.125 |
| 2406-10-16 |
-- |
-- |
5/8 |
1 |
7/8-14 |
1-5/16-12 |
-- |
1.76 |
1.375 |
| 2406-12-04 |
2406-12-04-IN |
2406-12-04-2PC |
3/4 |
1/4 |
1-1/16-12 |
7/16-20 |
1.09 |
1.46 |
1.250 |
| 2406-12-06 |
2406-12-06-IN |
2406-12-06-2PC |
3/4 |
3/8 |
1-1/16-12 |
9/16-18 |
1.09 |
1.46 |
1.250 |
| 2406-12-08 |
2406-12-08-IN |
2406-12-08-2PC |
3/4 |
1/2 |
1-1/16-12 |
3/4-16 |
1.19 |
1.56 |
1.250 |
| 2406-12-10 |
-- |
-- |
3/4 |
5/8 |
1-1/16-12 |
7/8-14 |
-- |
1.66 |
1.250 |
| 2406-12-12 |
-- |
-- |
3/4 |
3/4 |
1-1/16-12 |
1-1/16-12 |
-- |
1.77 |
1.250 |
| 2406-12-16 |
-- |
-- |
3/4 |
1 |
1-1/16-12 |
1-5/16-12 |
-- |
1.82 |
1.375 |
| 2406-14-04 |
2406-14-04-IN |
2406-14-04-2PC |
7/8 |
1/4 |
1-3/16-12 |
7/16-20 |
1.12 |
1.52 |
1.375 |
| 2406-14-06 |
2406-14-06-IN |
2406-14-06-2PC |
7/8 |
3/8 |
1-3/16-12 |
9/16-18 |
1.13 |
1.53 |
1.375 |
| 2406-14-08 |
2406-14-08-IN |
2406-14-08-2PC |
7/8 |
1/2 |
1-3/16-12 |
3/4-16 |
1.23 |
1.63 |
1.375 |
| 2406-14-10 |
2406-14-10-IN |
2406-14-10-2PC |
7/8 |
5/8 |
1-3/16-12 |
7/8-14 |
1.33 |
1.73 |
1.375 |
| 2406-14-12 |
-- |
-- |
7/8 |
3/4 |
1-3/16-12 |
1-1/16-12 |
-- |
1.83 |
1.375 |
| 2406-14-16 |
-- |
-- |
7/8 |
1 |
1-3/16-12 |
1-5/16-12 |
-- |
1.88 |
1.375 |
| 2406-16-04 |
2406-16-04-IN |
2406-16-04-2PC |
1 |
1/4 |
1-5/16-12 |
7/16-20 |
1.22 |
1.57 |
1.500 |
| 2406-16-06 |
2406-16-06-IN |
2406-16-06-2PC |
1 |
3/8 |
1-5/16-12 |
9/16-18 |
1.22 |
1.57 |
1.500 |
| 2406-16-08 |
2406-16-08-IN |
2406-16-08-2PC |
1 |
1/2 |
1-5/16-12 |
3/4-16 |
1.27 |
1.67 |
1.500 |
| 2406-16-10 |
2406-16-10-IN |
2406-16-10-2PC |
1 |
5/8 |
1-5/16-12 |
7/8-14 |
1.38 |
1.77 |
1.500 |
| 2406-16-12 |
2406-16-12-IN |
2406-16-12-2PC |
1 |
3/4 |
1-5/16-12 |
1-1/16-12 |
1.47 |
1.88 |
1.500 |
| 2406-16-14 |
-- |
-- |
1 |
7/8 |
1-5/16-12 |
1-3/16-12 |
-- |
1.91 |
1.500 |
| 2406-16-20 |
-- |
-- |
1 |
1-1/4 |
1-5/16-12 |
1-5/8-12 |
-- |
1.97 |
1.688 |
| 2406-16-24 |
-- |
-- |
1 |
1-1/2 |
1-5/16-12 |
1-7/8-12 |
-- |
2.10 |
2.000 |
| 2406-20-06 |
2406-20-06-IN |
2406-20-06-2PC |
1-1/4 |
3/8 |
1-5/8-12 |
9/16-18 |
1.22 |
1.67 |
2.000 |
| 2406-20-08 |
2406-20-08-IN |
2406-20-08-2PC |
1-1/4 |
1/2 |
1-5/8-12 |
3/4-16 |
1.32 |
1.72 |
2.000 |
| 2406-20-10 |
2406-20-10-IN |
2406-20-10-2PC |
1-1/4 |
5/8 |
1-5/8-12 |
7/8-14 |
1.42 |
1.82 |
2.000 |
| 2406-20-12 |
2406-20-12-IN |
2406-20-12-2PC |
1-1/4 |
3/4 |
1-5/8-12 |
1-1/16-12 |
1.53 |
1.93 |
2.000 |
| 2406-20-14 |
2406-20-14-IN |
2406-20-14-2PC |
1-1/4 |
7/8 |
1-5/8-12 |
1-3/16-12 |
1.57 |
1.95 |
2.000 |
| 2406-20-16 |
2406-20-16-IN |
2406-20-16-2PC |
1-1/4 |
1 |
1-5/8-12 |
1-5/16-12 |
1.59 |
1.97 |
2.000 |
| 2406-20-24 |
-- |
-- |
1-1/4 |
1-1/2 |
1-5/8-12 |
1-7/8-12 |
-- |
2.15 |
2.000 |
| 2406-24-08 |
2406-24-08-IN |
2406-24-08-2PC |
1-1/2 |
1/2 |
1-7/8-12 |
3/4-16 |
1.56 |
1.85 |
2.250 |
| 2406-24-10 |
2406-24-10-IN |
2406-24-10-2PC |
1-1/2 |
5/8 |
1-7/8-12 |
7/8-14 |
1.56 |
1.95 |
2.250 |
| 2406-24-12 |
2406-24-12-IN |
2406-24-12-2PC |
1-1/2 |
3/4 |
1-7/8-12 |
1-1/16-12 |
1.63 |
2.05 |
2.250 |
| 2406-24-14 |
2406-24-14-IN |
2406-24-14-2PC |
1-1/2 |
7/8 |
1-7/8-12 |
1-3/16-12 |
1.63 |
2.08 |
2.250 |
| 2406-24-16 |
2406-24-16-IN |
2406-24-16-2PC |
1-1/2 |
1 |
1-7/8-12 |
1-5/16-12 |
1.63 |
2.10 |
2.250 |
| 2406-24-20 |
2406-24-20-IN |
2406-24-20-2PC |
1-1/2 |
1-1/4 |
1-7/8-12 |
1-5/8-12 |
1.69 |
2.15 |
2.250 |
| 2406-24-32 |
-- |
-- |
1-1/2 |
2 |
1-7/8-12 |
2-1/2-12 |
-- |
2.52 |
2.625 |
| 2406-32-08 |
2406-32-08-IN |
2406-32-08-2PC |
2 |
1/2 |
2-1/2-12 |
3/4-16 |
1.48 |
2.10 |
2.875 |
| 2406-32-12 |
2406-32-12-IN |
2406-32-12-2PC |
2 |
3/4 |
2-1/2-12 |
1-1/16-12 |
1.69 |
2.30 |
2.875 |
| 2406-32-16 |
2406-32-16-IN |
2406-32-16-2PC |
2 |
1 |
2-1/2-12 |
1-5/16-12 |
1.74 |
2.35 |
2.875 |
| 2406-32-20 |
2406-32-20-IN |
2406-32-20-2PC |
2 |
1-1/4 |
2-1/2-12 |
1-5/8-12 |
1.78 |
2.40 |
2.875 |
| 2406-32-24 |
2406-32-24-IN |
2406-32-24-2PC |
2 |
1-1/2 |
2-1/2-12 |
1-7/8-12 |
1.91 |
2.52 |
2.875 |
