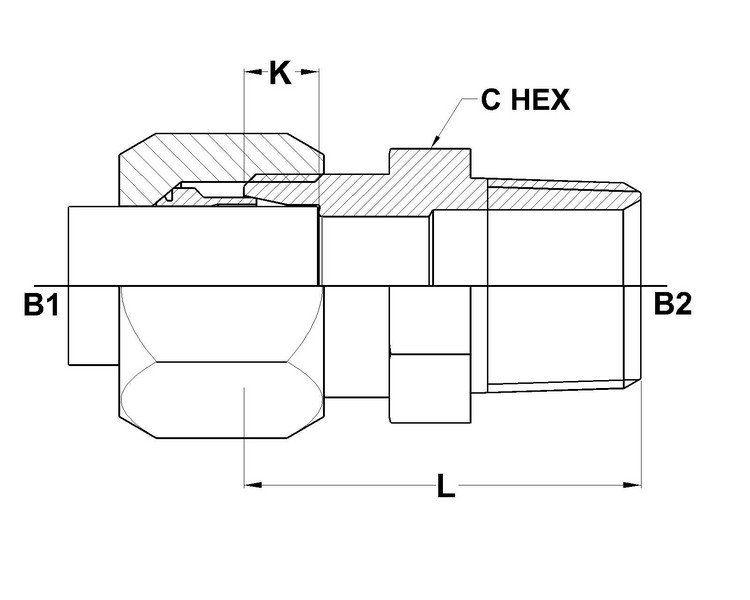

C2404 Series SAE# 080102 / MS# 51819
| PART NO.SIZE |
TUBE O.D. |
B1 THREAD |
B2 NPTF |
B1 DRILL |
B2 DRILL |
L LGTH |
K DEPTH |
C HEX |
| C2404-02-02 |
1/8 |
5/16-24 |
1/8-27 |
0.093 |
0.188 |
1.04 |
0.188 |
0.438 |
| C2404-02-04 |
1/8 |
5/16-24 |
1/4-18 |
0.093 |
0.281 |
1.24 |
0.188 |
0.625 |
| C2404-03-02 |
3/16 |
3/8-24 |
1/8-27 |
0.125 |
0.188 |
1.09 |
0.234 |
0.438 |
| C2404-04-02 |
1/4 |
7/16-20 |
1/8-27 |
0.203 |
0.188 |
1.12 |
0.234 |
0.500 |
| C2404-04-04 |
1/4 |
7/16-20 |
1/4-18 |
0.203 |
0.281 |
1.32 |
0.234 |
0.625 |
| C2404-04-06 |
1/4 |
7/16-20 |
3/8-18 |
0.203 |
0.406 |
1.33 |
0.234 |
0.812 |
| C2404-04-08 |
1/4 |
7/16-20 |
1/2-14 |
0.203 |
0.531 |
1.58 |
0.234 |
0.937 |
| C2404-05-02 |
5/16 |
1/2-20 |
1/8-27 |
0.234 |
0.188 |
1.12 |
0.250 |
0.562 |
| C2404-05-04 |
5/16 |
1/2-20 |
1/4-18 |
0.234 |
0.281 |
1.32 |
0.250 |
0.625 |
| C2404-05-06 |
5/16 |
1/2-20 |
3/8-18 |
0.234 |
0.406 |
1.33 |
0.250 |
0.812 |
| C2404-06-02 |
3/8 |
9/16-18 |
1/8-27 |
0.281 |
0.188 |
1.15 |
0.250 |
0.625 |
| C2404-06-04 |
3/8 |
9/16-18 |
1/4-18 |
0.281 |
0.281 |
1.34 |
0.250 |
0.625 |
| C2404-06-06 |
3/8 |
9/16-18 |
3/8-18 |
0.281 |
0.406 |
1.35 |
0.250 |
0.812 |
| C2404-06-08 |
3/8 |
9/16-18 |
1/2-14 |
0.281 |
0.531 |
1.60 |
0.250 |
0.937 |
| C2404-08-04 |
1/2 |
3/4-16 |
1/4-18 |
0.422 |
0.281 |
1.44 |
0.305 |
0.812 |
| C2404-08-06 |
1/2 |
3/4-16 |
3/8-18 |
0.422 |
0.406 |
1.44 |
0.305 |
0.812 |
| C2404-08-08 |
1/2 |
3/4-16 |
1/2-14 |
0.422 |
0.531 |
1.69 |
0.305 |
0.937 |
| C2404-08-12 |
1/2 |
3/4-16 |
3/4-14 |
0.422 |
0.719 |
1.76 |
0.305 |
1.125 |
| C2404-10-06 |
5/8 |
7/8-14 |
3/8-18 |
0.500 |
0.406 |
1.56 |
0.350 |
0.937 |
| C2404-10-08 |
5/8 |
7/8-14 |
1/2-14 |
0.500 |
0.531 |
1.75 |
0.350 |
0.937 |
| C2404-10-12 |
5/8 |
7/8-14 |
3/4-14 |
0.500 |
0.719 |
1.82 |
0.350 |
1.125 |
| C2404-12-08 |
3/4 |
1-1/16-12 |
1/2-14 |
0.656 |
0.531 |
1.88 |
0.350 |
1.125 |
| C2404-12-12 |
3/4 |
1-1/16-12 |
3/4-14 |
0.656 |
0.719 |
1.88 |
0.350 |
1.125 |
| C2404-12-16 |
3/4 |
1-1/16-12 |
1-11 1/2 |
0.656 |
0.938 |
2.07 |
0.350 |
1.375 |
| C2404-14-12 |
7/8 |
1-3/16-12 |
3/4-14 |
0.719 |
0.719 |
1.88 |
0.350 |
1.250 |
| C2404-16-12 |
1 |
1-5/16-12 |
3/4-14 |
0.875 |
0.719 |
1.88 |
0.415 |
1.375 |
| C2404-16-16 |
1 |
1-5/16-12 |
1-11 1/2 |
0.875 |
0.938 |
2.07 |
0.415 |
1.375 |
| C2404-20-20 |
1-1/4 |
1-5/8-12 |
1-1/4-11 1/2 |
1.093 |
1.250 |
2.18 |
0.415 |
1.688 |
| C2404-24-20 |
1-1/2 |
1-7/8-12 |
1-1/4-11 1/2 |
1.344 |
1.250 |
2.25 |
0.485 |
2.000 |
| C2404-24-24 |
1-1/2 |
1-7/8-12 |
1-1/2-11 1/2 |
1.344 |
1.500 |
2.28 |
0.485 |
2.000 |
| C2404-32-32 |
2 |
2-1/2-12 |
2-11 1/2 |
1.813 |
1.938 |
2.46 |
0.485 |
2.625 |
