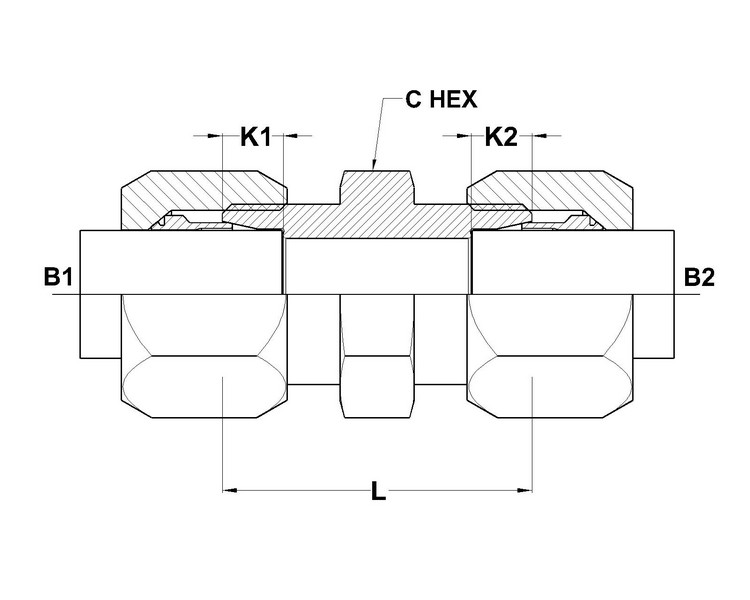

| PART NO.SIZE | TUBE O.D. | B1 THREAD | B2 THREAD | B1 DRILL | B2 DRILL | L LGTH | K1 DEPTH | K2 DEPTH | C HEX |
|---|---|---|---|---|---|---|---|---|---|
| C2403-LH-04-04 | 1/4 | 7/16-20 | 7/16-20 | 0.203 | 0.203 | 1.18 | 0.234 | 0.234 | 0.688 |
| C2403-LH-06-06 | 3/8 | 9/16-18 | 9/16-18 | 0.281 | 0.281 | 1.24 | 0.250 | 0.250 | 0.812 |
| C2403-LH-08-06 | 1/2 3/8 | 3/4-16 | 9/16-18 | 0.422 | 0.281 | 1.33 | 0.305 | 0.250 | 1.000 |
| C2403-LH-08-08 | 1/2 | 3/4-16 | 3/4-16 | 0.422 | 0.422 | 1.42 | 0.305 | 0.305 | 1.000 |
| C2403-LH-10-10 | 5/8 | 7/8-14 | 7/8-14 | 0.500 | 0.500 | 1.61 | 0.350 | 0.350 | 1.125 |
| C2403-LH-12-12 | 3/4 | 1-1/16-12 | 1-1/16-12 | 0.656 | 0.656 | 1.81 | 0.350 | 0.350 | 1.375 |
| C2403-LH-16-16 | 1 | 1-5/16-12 | 1-5/16-12 | 0.875 | 0.875 | 1.81 | 0.415 | 0.415 | 1.625 |
