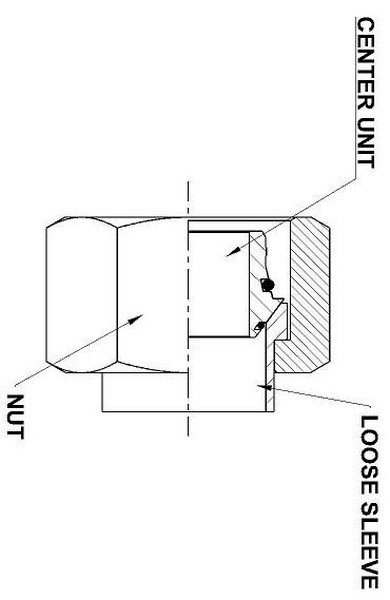

| Connecting Part | Series | PN Bar | Tube OD | Center Unit With 'O' Rings | Loose Sleeve | Nut |
|---|---|---|---|---|---|---|
| BO-A 06-L | L | 500 | 6 | BO-ZR 06-L | BO-DR 06-L | BO-M 06-L |
| BO-A 08-L | L | 500 | 8 | BO-ZR 08-L | BO-DR 08-L | BO-M 08-L |
| BO-A 10-L | L | 500 | 10 | BO-ZR 10-L | BO-DR 10-L | BO-M 10-L |
| BO-A 12-L | L | 400 | 12 | BO-ZR 12-L | BO-DR 12-L | BO-M 12-L |
| BO-A 15-L | L | 400 | 15 | BO-ZR 15-L | BO-DR 15-L | BO-M 15-L |
| BO-A 18-L | L | 400 | 18 | BO-ZR 18-L | BO-DR 18-L | BO-M 18-L |
| BO-A 22-L | L | 250 | 22 | BO-ZR 22-L | BO-DR 22-L | BO-M 22-L |
| BO-A 28-L | L | 250 | 28 | BO-ZR 28-L | BO-DR 28-L | BO-M 28-L |
| BO-A 35-L | L | 250 | 35 | BO-ZR 35-L | BO-DR 35-L | BO-M 35-L |
| BO-A 42-L | L | 250 | 42 | BO-ZR 42-L | BO-DR 42-L | BO-M 42-L |
| BO-A 06-S | S | 630 | 6 | BO-ZR 06-S | BO-DR 06-S | BO-M 06-S |
| BO-A 08-S | S | 630 | 8 | BO-ZR 08-S | BO-DR 08-S | BO-M 08-S |
| BO-A 10-S | S | 630 | 10 | BO-ZR 10-S | BO-DR 10-S | BO-M 10-S |
| BO-A 12-S | S | 630 | 12 | BO-ZR 12-S | BO-DR 12-S | BO-M 12-S |
| BO-A 14-S | S | 630 | 14 | BO-ZR 14-S | BO-DR 14-S | BO-M 14-S |
| BO-A 16-S | S | 630 | 16 | BO-ZR 16-S | BO-DR 16-S | BO-M 16-S |
| BO-A 20-S | S | 400 | 20 | BO-ZR 20-S | BO-DR 20-S | BO-M 20-S |
| BO-A 25-S | S | 400 | 25 | BO-ZR 25-S | BO-DR 25-S | BO-M 25-S |
| BO-A 30-S | S | 400 | 30 | BO-ZR 30-S | BO-DR 30-S | BO-M 30-S |
| BO-A 38-S | S | 400 | 38 | BO-ZR 38-S | BO-DR 38-S | BO-M 38-S |
| Dimensions given approx. Temp RANGE without pressure reductions FOR 'O' Ring sealing of NBR (buna N- STD) -35° TO +100° C, FOR FPM (Viton - ON request) -25° TO +120° C. |
