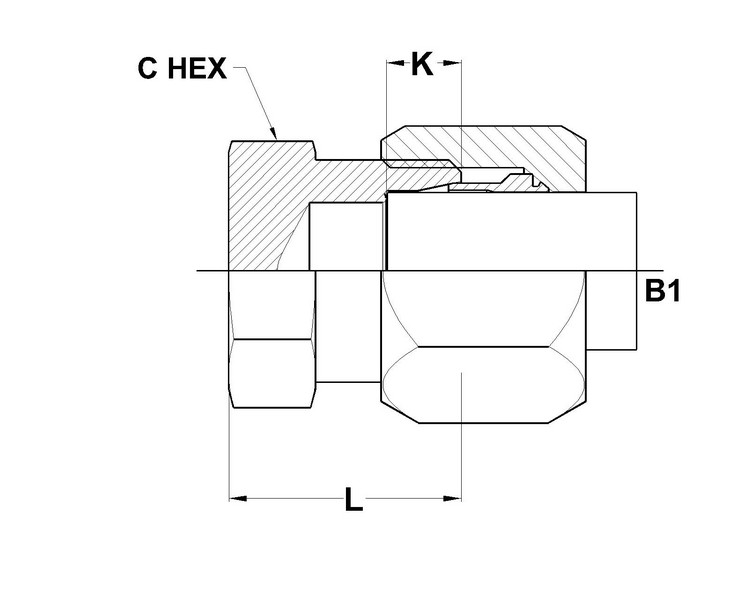

| PART NO.SIZE | TUBE O.D. | B1 THREAD | B1 DRILL | L LGTH | K DEPTH | C HEX |
|---|---|---|---|---|---|---|
| C2408-02 | 1/8 | 5/16-24 | 0.093 | 0.63 | 0.188 | 0.438 |
| C2408-04 | 1/4 | 7/16-20 | 0.203 | 0.71 | 0.234 | 0.500 |
| C2408-06 | 3/8 | 9/16-18 | 0.281 | 0.75 | 0.250 | 0.625 |
| C2408-08 | 1/2 | 3/4-16 | 0.422 | 0.85 | 0.305 | 0.812 |
| C2408-10 | 5/8 | 7/8-14 | 0.500 | 0.97 | 0.350 | 0.938 |
| C2408-12 | 3/4 | 1-1/16-12 | 0.656 | 1.10 | 0.350 | 1.125 |
| C2408-16 | 1 | 1-5/16-12 | 0.875 | 1.10 | 0.415 | 1.375 |
| C2408-20 | 1-1/4 | 1-5/8-12 | 1.093 | 1.18 | 0.415 | 1.688 |
