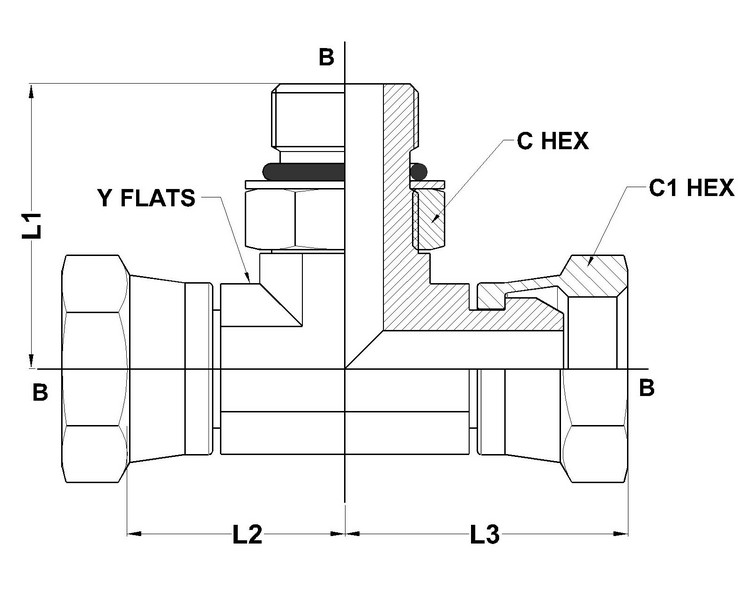

| PART NO.SIZE | TUBE O.D. | A SAE ORB | B NPSM | A DRILL | B DRILL | L1 LGTH | L2 LGTH | L3 LGTH | C HEX | C1 HEX | Y FLATS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6911-08-08-08-NWO-FG | 1/2 | 3/4-16 | 1/2-14 | 0.391 | 0.44 | 1.45 | 1.11 | 1.39 | 0.875 | 1.000 | 0.875 |
| 6911-10-12-12-NWO-FG | 5/8 | 7/8-14 | 3/4-14 | 0.484 | 0.61 | 1.78 | 1.30 | 1.65 | 1.000 | 1.250 | 1.062 |
