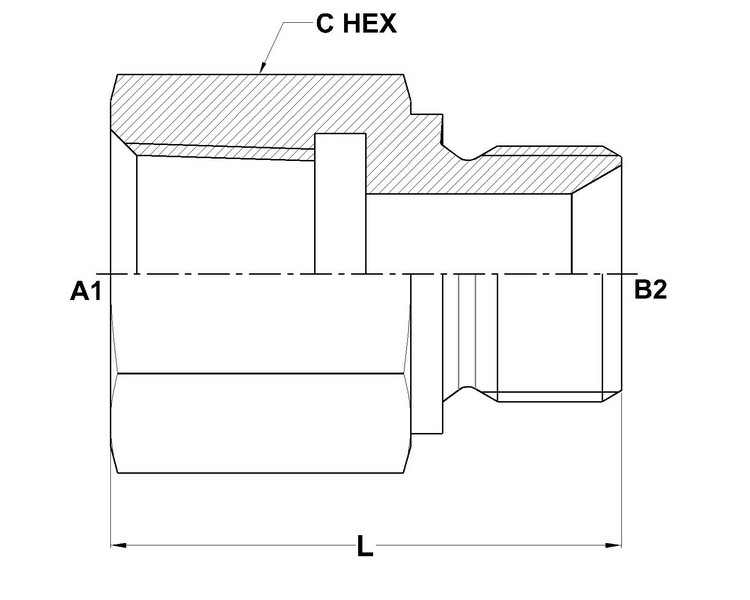

7042 Series
| PART NO.SIZE |
A1 NPTF |
B2 BSPP |
B2 DRILL |
L LGTH |
C HEX |
| 7042-02-02 |
1/8-27 |
1/8-28 |
3.5 |
24.2 |
15.0 |
| 7042-02-04 |
1/8-27 |
1/4-19 |
4.7 |
18.0 |
19.0 |
| 7042-02-06 |
1/8-27 |
3/8-19 |
7.9 |
20.0 |
22.0 |
| 7042-02-08 |
1/8-27 |
1/2-14 |
11.1 |
24.0 |
27.0 |
| 7042-04-02 |
1/4-18 |
1/8-28 |
3.5 |
28.6 |
19.0 |
| 7042-04-04 |
1/4-18 |
1/4-19 |
4.7 |
31.6 |
19.0 |
| 7042-04-06 |
1/4-18 |
3/8-19 |
7.9 |
20.0 |
22.0 |
| 7042-04-08 |
1/4-18 |
1/2-14 |
11.1 |
24.0 |
27.0 |
| 7042-04-12 |
1/4-18 |
3/4-14 |
16.7 |
28.0 |
32.0 |
| 7042-06-04 |
3/8-18 |
1/4-19 |
4.7 |
32.9 |
22.0 |
| 7042-06-06 |
3/8-18 |
3/8-19 |
7.9 |
33.9 |
22.0 |
| 7042-06-08 |
3/8-18 |
1/2-14 |
11.1 |
24.0 |
27.0 |
| 7042-08-02 |
1/2-14 |
1/8-28 |
3.5 |
36.0 |
28.0 |
| 7042-08-04 |
1/2-14 |
1/4-19 |
4.7 |
39.0 |
28.0 |
| 7042-08-06 |
1/2-14 |
3/8-19 |
7.9 |
40.0 |
28.0 |
| 7042-08-08 |
1/2-14 |
1/2-14 |
11.1 |
42.0 |
28.0 |
| 7042-08-12 |
1/2-14 |
3/4-14 |
16.7 |
28.0 |
32.0 |
| 7042-12-08 |
3/4-14 |
1/2-14 |
11.1 |
43.5 |
35.0 |
| 7042-12-12 |
3/4-14 |
3/4-14 |
16.7 |
45.5 |
35.0 |
| 7042-16-16 |
1-11-1/2 |
1-11 |
22.2 |
54.8 |
41.0 |
| 7042-16-20 |
1-11-1/2 |
1-1/4-11 |
28.6 |
39.0 |
50.0 |
| 7042-20-16 |
1-1/4-11-1/2 |
1-11 |
22.2 |
57.1 |
50.0 |
| 7042-20-20 |
1-1/4-11-1/2 |
1-1/4-11 |
28.6 |
58.1 |
50.0 |
| 7042-20-24 |
1-1/4-11-1/2 |
1-1/2-11 |
33.3 |
45.0 |
55.0 |
| 7042-24-20 |
1-1/2-11-1/2 |
1-1/4-11 |
28.6 |
58.4 |
60.0 |
| 7042-24-24 |
1-1/2-11-1/2 |
1-1/2-11 |
33.3 |
60.4 |
60.0 |
| 7042-32-32 |
2-11-1/2 |
2-11 |
46.0 |
65.9 |
73.0 |
