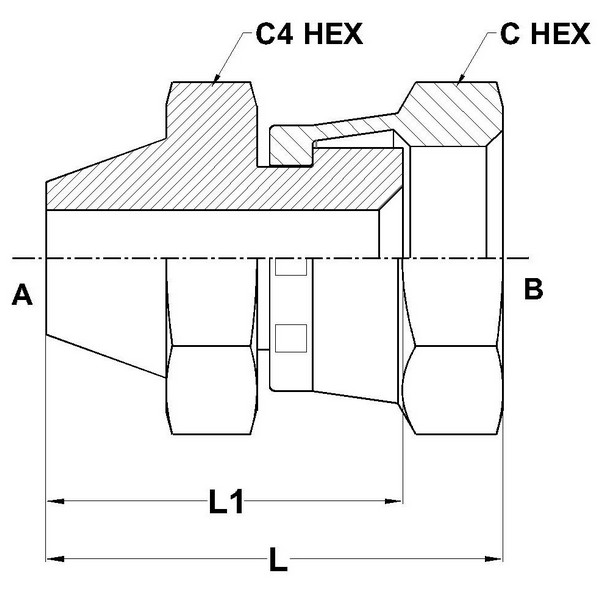

6316 Series
| PART NO.SIZE |
TUBE O.D. |
A WELD |
B FJS |
B DRILL |
L1 LGTH |
L LGTH |
C HEX |
C4 HEX |
| 6316-04 |
1/4 |
0.250 |
7/16-20 |
0.172 |
1.01 |
1.364 |
0.562 |
0.562 |
| 6316-06 |
3/8 |
0.375 |
9/16-18 |
0.297 |
1.01 |
1.470 |
0.688 |
0.688 |
| 6316-08 |
1/2 |
0.500 |
3/4-16 |
0.391 |
1.17 |
1.609 |
0.875 |
0.875 |
| 6316-10 |
5/8 |
0.625 |
7/8-14 |
0.484 |
|
|
1.000 |
1.000 |
| 6316-12 |
3/4 |
0.750 |
1-1/16-12 |
0.609 |
1.26 |
1.837 |
1.250 |
1.062 |
| 6316-16 |
1 |
1.000 |
1-5/16-12 |
0.844 |
1.40 |
2.003 |
1.500 |
1.312 |
| 6316-20 |
1-1/4 |
1.250 |
1-5/8-12 |
1.078 |
1.63 |
2.275 |
2.000 |
1.750 |
| 6316-24 |
1-1/2 |
1.500 |
1-7/8-12 |
1.078 |
|
|
2.250 |
2.000 |
